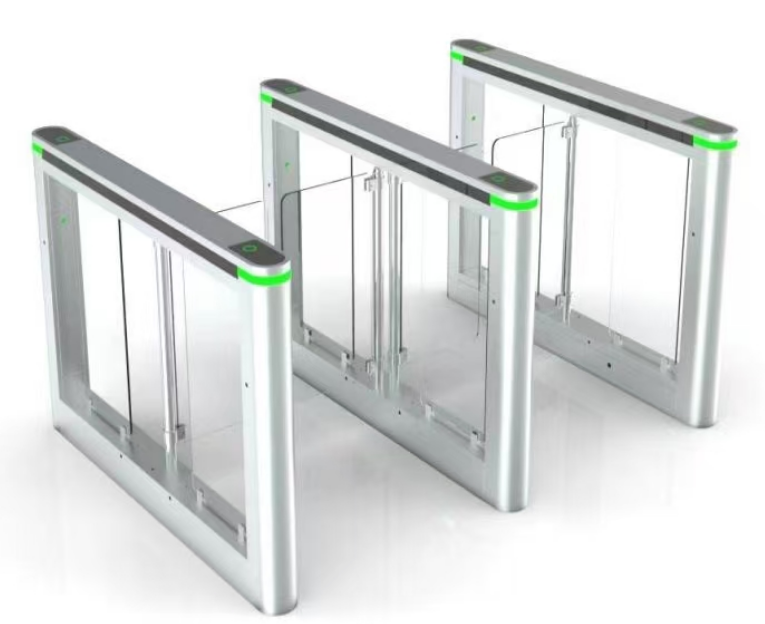

Product Introduction
This swing gate is a new generation of high-end intelligent pedestrian channel management equipment, which adopts a DC brushless silent anti-collision movement and is equipped with intelligent torque sensing algorithm. The device runs smoothly and quietly, with soft start stop and automatic rebound when encountering obstacles, intelligent anti pinch, anti tailgating, automatic reset locking and other core functions. Different from traditional brushed swing brakes, this machine has no worn-out carbon brushes, extremely low failure rate, and longer service life. It also supports widening the passage, which can meet the barrier free passage of pedestrians, suitcases, wheelchairs, and strollers. It is suitable for high-end office and public scenes and is the preferred equipment for smart entrance and exit security control.
Core advantages of the product
(1) Brushless motor silent drive: no carbon brush wear, low heat generation, zero noise operation, smooth start stop without jerking, suitable for high-end lobby quiet scenes;
(2) Intelligent torque anti-collision and anti pinch: Real time detection of traffic resistance, immediate reverse rebound buffering when encountering people or objects, eliminating the problem of people being trapped or damaged by collisions from the root;
(3) Ultra wide passage width: supports 600-1200mm widened channels, suitable for large items and barrier free passage needs, with strong versatility;
(4) High precision anti tailgating recognition: Multi level partitioned infrared sensing accurately determines the passage trajectory of personnel, effectively preventing tailgating and close entry;
(5) Compliant fire protection linkage: automatic power-off opening, full channel opening for receiving fire protection signals, fully compliant with fire safety acceptance and evacuation standards;
(6) System wide compatibility expansion: seamless integration with facial recognition, card swiping, QR code, ID card, visitor, attendance, and construction site real name system;
Thickened industrial grade body: Made of precision 304 stainless steel, it is resistant to impact, corrosion, and wear, and can be used stably for both indoor and outdoor environments for a long time.
Technical Specifications
| Project | Parameter |

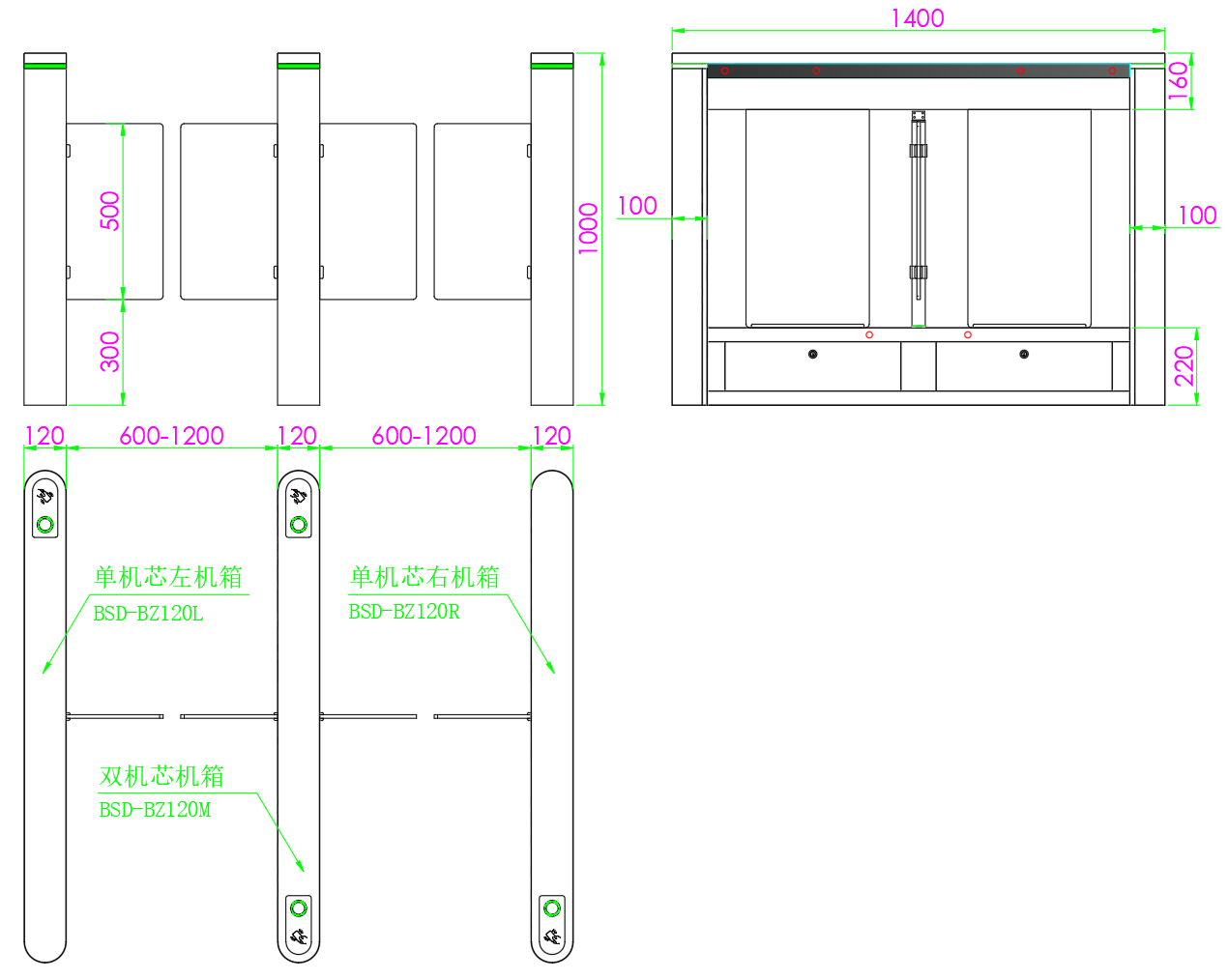

| Overall dimensions | Length * Width * Height: 1400 mm * 120 mm * 1000 mm |
| Box material | National standard 304 stainless steel, plate thickness t1.2mm, fine polishing process |
| Door panel material | 8-10mm thick high-transparency acrylic / 304 stainless steel options available |
| Channel Width | Standard 600mm, (Customizable 600-1200mm, Wide Model Available) |
| Input Voltage | AC 220V ± 10%, 50Hz standard mains power supply |
| Overall power | Standby power ≤ 12W, peak working power ≤ 45W |
| Throughput speed | Stable throughput: 35 – 40 people per minute |
| Response time | Authorization completion and startup ≤ 0.2 seconds |
| Door opening delay | Through pulse (adjustable) 1 – 60 seconds; continuous signal |
| Door opening and closing time | Double door < 2 seconds; Single door > 1 second |
| Communication Protocol | RS485, TCP/IP Ethernet dual communication, supports network management |
| Infrared quantity | 6 pairs |
| Environmental Temperature | -20℃~70℃ |
| Working humidity | ≤ 90% RH (no condensation, no water accumulation) |
| Protection level | IP54 (indoor standard version), can be upgraded to IP65 outdoor waterproof and dustproof version |
