Product Introduction
The fully automatic three-roll barrier is a high-end intelligent pedestrian access control device, featuring a DC brushless motor-driven structure that requires no manual assistance. It automatically grants passage and locks upon authorization. The device operates smoothly, quietly, and resists violent impacts, equipped with multiple safety mechanisms such as anti-tailing, anti-reversal, and fire linkage. Widely used in public entrances and exits of state-owned enterprises, public institutions, industrial parks, commercial venues, and public transportation, it serves as a core component of smart security access management.
Core Product Advantages
(1) Fully automatic motor drive ensures smooth passage, low noise, and zero jerking, delivering an experience superior to semi-automatic three-roller barriers;
(2) Mechanical and electronic dual locking structure, resistant to forced entry, tailgating, and reversal, with high security level;
(3) It boasts exceptional compatibility and can integrate with all mainstream access control identification devices, including facial recognition, card swiping, QR codes, ID cards, and NFC;
(4) Standard fire safety power-off drop rod function, with full passage opening in emergency situations, fully compliant with fire safety acceptance regulations;
The entire machine is made of thickened 304 stainless steel, offering rust and corrosion resistance, wear resistance, and adaptability to both indoor and outdoor environments;
(6) Intelligent fault self-diagnosis and overload protection ensure exceptional equipment stability and service life.
Technical Specifications
| Project | Parameter |

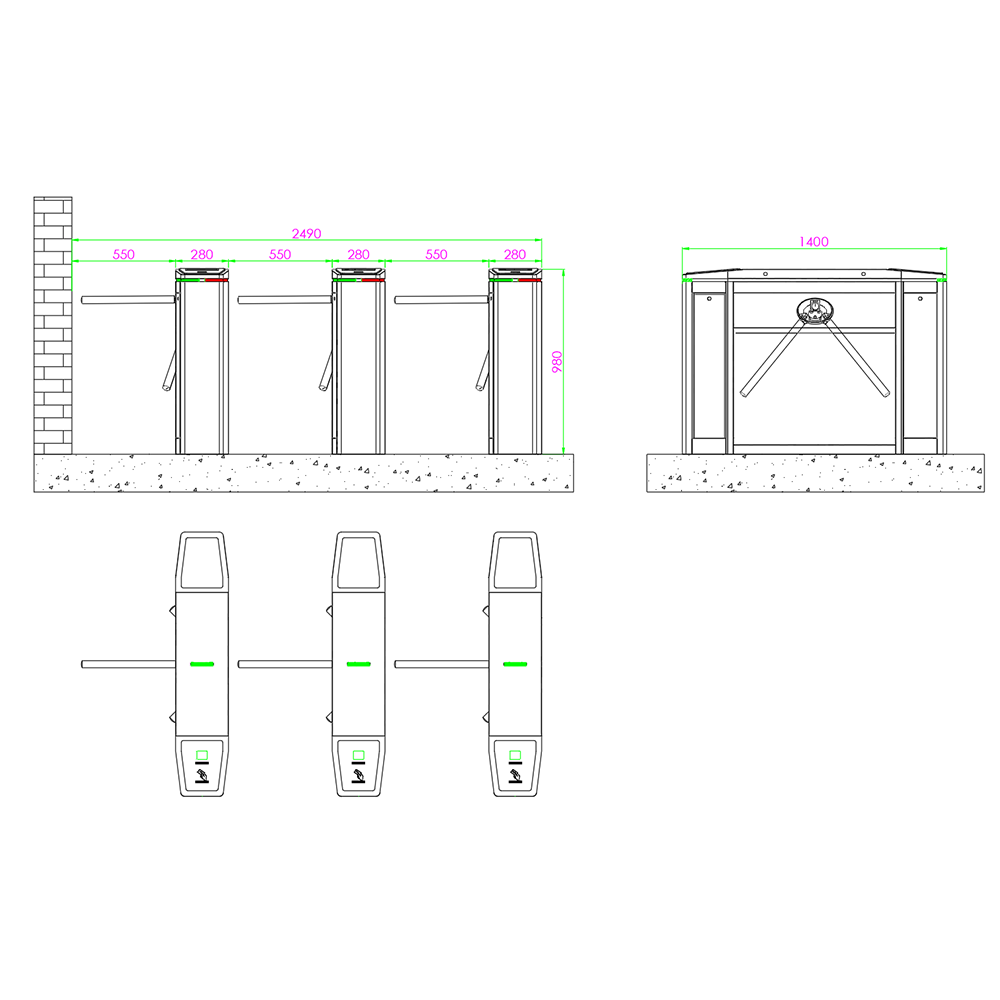

| Overall dimensions | Length * Width * Height: 1400 mm * 280 mm * 980 mm |
| Box material | National standard 304 stainless steel plate with thickness t1.2, surface with brushed finish |
| Gate mechanism structure | 120° three-section three-way rotating structure |
| Gate lever specification | 304 stainless steel round lever, with a diameter of 38mm and a length of 550mm |
| Channel Width | Standard Single-Person Channel Width: 550mm |
| Input Voltage | AC 220V ± 10% 50Hz (Only for control and identification part power supply) |
| Overall power | Standby power ≤ 10W, Peak working power ≤ 35W |
| Throughput efficiency | Stable throughput of 30 people per minute |
| Overall weight of the machine | 45kg |
| Door opening and closing speed | Passage response after recognition ≤ 0.3 seconds |
| Communication Protocol | RS485, TCP/IP Network Protocol |
| Environmental Temperature | -25℃ ~ +65℃ |
| Working humidity | ≤ 90% RH (no condensation, no water accumulation) |
| Protection level | IP54 (indoor standard version), can be upgraded to IP65 outdoor waterproof and dustproof version |
| Service life | The movement can operate continuously for ≥ 5 million times |
